Jasmine's first time in llvm land and her dotfiles

2025-07-06

Prologue

Hi everyone, how's everybody doing? :) I hope everybody's doing great :) I'm still doing good. I've moved back to my parents' place in OC after graduated from Berkeley.

So, today's article is mostly a report on my current progress learning about the llvm codebase as well as all the modifications I've made to my dotfiles since then. I hope everybody enjoys.

Also, as tradition, here's First Steps and Scattered and Lost, both from Celeste by Lena Raine :)

There's also an analysis video on the latter if you wanna check them out :)

I hope everybody enjoys.

Introduction

Working on LLVM (with neovim btw as your text editor) can be a frightening process, especially for a beginner. Since starting my employment at Igalia (you can find me here!, how cool is thatttt!), I've been learning a lot, as well as sharpening my dotfiles to increase my efficiency/productivity. In this article, I'll report on what I've done since then, as well as any changes I've made to my dotfiles.

This article won't deep dive into the technicalities too much like the gccrs blog, but instead give a quick overview and then scoot right into the modifications of dotfiles together with their reasoning for it.

Areas of contribution, issues and pull requests

Area of contribution

At Igalia currently, I'm tasked with contributing to the back end in WebAssembly and RISCV. Since then, I've opened 7 issues and closed 3 of them. I've also opened 6 pull requests and closed 5 of them. Most of my PR dealt with optimization on the SelectionDAG framework in the WebAssembly back end. I'm still investigating and watching a loop optimization issue for RISCV but not sure how I'll solve it :)

A few notable PRs include:

PR145627: I optimized the WebAssembly back end by querying the SelectionDAG and redid the computation for the bitmask instruction of illegal size $>$ 128, reducing 400 lines of assembly into around 10 lines.
PR145829: I and my technical mentor Luke Lau solved a 2-year-old issue from 2023, helping optimize a add-global nuw -> load to load, cutting down the instruction size by half every time we load a global address wth a nuw (no unsigned wrap) offset in WebAssembly.
PR146750: I helped propagate poison to a few trivially vectorizable intrinsic in LLVM IR by folding them into a Poison value directly. This helps enable other optimization pass by cutting down on calls to such intrinsics.

I'll be including a few links that I've used as my learning resources during this time, be sure to check them out!

Issues and Pull requests

Here is the list of issues that I've opened, generated from

gh issue list -A badumbatish --state all --json title,number,state,createdAt --jq '.[] | "| [\(.number)]
(https://github.com/llvm/llvm-project/pull/\(.number)) |  **\(.state)** |  \(.title) | \(.createdAt) |"'

Issue Number	Issue Status	Issue Title	Date
147116	OPEN	[NFC] Clean up one off case of poison folding in simplifyBinaryIntrinsic	2025-07-04T22:18:13Z
146769	OPEN	[ConstantFolding][Intrinsics] Missed folding of poison in a few trivially vectorizable intrinsics	2025-07-02T20:20:31Z
146473	CLOSED	[BOLT] Error BOLT-PGO-ing clang on MacOS 15.4	2025-07-01T06:09:51Z
145433	OPEN	[Infrastructure] Failed unrelated LLDB TestRetryWithStdModule.py & TestStdModuleWithConflicts.py & TestImportStdModule.py	2025-06-23T23:35:05Z
145416	CLOSED	[Code clean up] [X86 Test] DebugInfo/assignment-tracking/X86/large-type.ll lacks target triple	2025-06-23T22:04:45Z
145177	CLOSED	[WebAssembly] Missed optimization in any_true/all_true	2025-06-21T16:45:17Z
144614	OPEN	[WebAssembly] Degenerate case in vectorization of all true	2025-06-17T22:36:27Z

Here is the list of PR that I've attempted, generated from

gh pr list -A badumbatish --state all --json title,number,state,createdAt --jq '.[] | "| [\(.number)]
(https://github.com/llvm/llvm-project/pull/\(.number)) |  **\(.state)** |  \(.title) | \(.createdAt) |"'

PR Number	PR Status	PR Title	Date
146750	MERGED	[InstCombine] Propagate poison pow[i], [us]add, [us]sub and [us]mul	2025-07-02T17:38:04Z
145829	MERGED	[WebAssembly] Fold TargetGlobalAddress with added offset	2025-06-26T02:01:33Z
145764	MERGED	Add triple target to buildtype.ll in X86	2025-06-25T18:49:47Z
145627	MERGED	[WebAssembly] [Backend] Wasm optimize illegal bitmask	2025-06-25T02:18:47Z
145108	OPEN	[WebAssembly] [Backend] Combine and(X, shuffle(X, pow 2 mask)) to all true	2025-06-20T22:05:28Z
144741	MERGED	[WebAssembly] Fold any/alltrue (setcc x, 0, eq/ne) to [not] any/alltrue x	2025-06-18T16:08:30Z

I want to emphasize that a lot of the issues that enabled these PRs were sourced by Luke. Without these issues, I'm afraid I might still be searching for llvm issues on github without knowing their difficulty, wasting my own time and efforts on unnecessary unfriendly-to-beginner issues. I'm thankful for his guidance for my first few steps.

Dotfiles and toolings

Alright hahhaha nice, we've finally got over the technical part, let's talk about my dotfiles.

During the first few weeks at Igalia, a lot of modifications were made to my dotfiles configuration to allow for more efficient workflow.

The dotfiles is thus geared towards neovim/tmux/MacOS and my job, which is compiler development.

Here, I'm providing readers with detailed reasoning for my modifications of my dotfiles. Interested readers can find the most up to date docs and reasoning through this dotfiles link.

Before blindly initializing and running the commands in this dotfile, do your due diligence first and read through every link here if you're not familiar with one. You can also dive into the configuration files themselves.

Why?

A very, very smart CS person in my compiler class at uni once told me something along the line of "use/build your tool very well" and I feel like I want to share it in this blog. The use case of when he told me might be different , but the principle still remains the same: regardless if it's about the compiler, terminal tool, or your IDE, it really pays off to learn how to use your tool so good that it completely boosts your productivity into a different dimension.

In my case, automating to shave seconds off each time I compile, test, debug or query my code really reinforces the dev cycle, making me lose less mental capacity and gain more efficiency.

Alright, that's all the yapping. Let's get to it :)

Initialization and Upkeep

I used chezmoi to manage my dotfiles.

Here's an excerpt from the website itself:

chezmoi helps you manage your personal configuration files (dotfiles, like ~/.gitconfig) across multiple machines.

chezmoi provides many features beyond symlinking or using a bare git repo including:

- templates (to handle small differences between machines)
- password manager support (to store your secrets securely)
- importing files from archives (great for shell and editor plugins)
- full file encryption (using gpg or age)
- running scripts (to handle everything else)

Initialization

Fork this repository and then run the following command to initial the configuration.

chezmoi init git@github.com:<your_github_username>/dotfiles.git && chezmoi update

Upkeep via custom commands

With a large number of files to keep up with and update, I've outgrown chezmoi's default commands: chezmoi add, git add, and git push... The demands to automate the upkeep of my files has led to a small number of commands that wraps chezmoi to make my maintainance easier:

cadd: chezmoi add every files that is managed by chezmoi to git, commit them and show the difference. I still have to add the file once manually.
cpush: Push all the changes to remote (Basically a wrapped chezmoi cd && git push)
cap: A wrapper executable that executes cadd and cpush
cinstall: On a new mac machine, I call this script to install (almost) all necessary packages for my development.

With these commands, I:

Don't have to remember which files I've edited or changed.
Don't have to remember which package/library I need to install on a new machine
Cut downs from (at minimum) 20 keystrokes to (at most) 4 keystrokes to register my new modifications.
Waste no time waiting for chezmoi to add, write my commits and push as there is a script guaranteeing that each time it's the same result.

Although not explicitly mentioned anymore in the next few sections, you can expect each new tooling introduced will have the same positive effects that are mentioned in this section: a few more seconds/minutes here and there will add up to hours at the end of the week.

Window Manager (WM)

On MacOS, I'm currently using yabai together with skhd to drive my window management setup. Have a quick read about them if you haven't got a chance.

Using a Window Manager alleviates my reliance on the built-in mousepad and relieves me from programming wrist pain

Let's talk about WM now :)

I provide an executable called yabai_reload to automate reloading and running yabai/skhd whenever you restart MacOS or edit your yabai/skhd config.

Firstly, run yabai_reload to get yabai and skhd running/reset.

Secondly, there's a philosophy that you probably need to know about the window manager keybind's prefix.

Cmd + key: Switch the focus to ...
Shift + Cmd + key: Move the actual window to ...

WM keybinds

Cmd + hjkl: (Switch) the focus to left down up right window in the current workspace.
Cmd + 1234: (Switch) to focus to workspace 1 2 3 4
Shift + Cmd + hjkl: (Move the current window) (in the current workspace) to left down up right.
Shift + Cmd + 1234: (Move the current window) to workspace 1 2 3 4.

Atuin

Atuin is an automatic fuzzy finding tool for your terminal commands. It has helped me so much with rerunning my building and testing commands and has saved me hours of work.

I recommend you check out their website and watch the demo for yourself.

In my opinion, it's a pretty essential tool for all CLI users.

Kitty

Kitty is my chosen terminal. I switched from iterm2 to Kitty for the following reason:

GPU acceleration: Kitty is smoother and faster than iterm2, this is important on a big codebase like llvm due to its massive improvement on rendering speed (rendering text in a big codebase in neovim on iterm2 is a pain.)
Configuration ease: configuration for Kitty is extremely easy: everything is in 1 single file, from themes to extra shortcuts.

When you're doing software dev on a big codebase, aesthetics is an afterthought instead of performance/speed.

I also configure a few sane commands in Kitty for faster project maneuver:

Cmd + M: Run the executable sesh in the current terminal.
Cmd + D: Run the command ctrl + b + d to exit the current tmux session.
Cmd + N: Run the command ctrl + b + n to go to the next panel in the current tmux session.
Cmd + B: Run the command ctrl + b + p to go to the previous panel in the current tmux session.

ccache

I set my ccache to be

file_clone = true
inode_cache = true
max_size = 70G
base_dir = /
absolute_paths_in_stderr = true

to allow ccache of multiple directories and more max size as well as more caching speed on my llvm builds, both release and debug version.

Read the ccache manual for option explanations.

Neovim and programming

Let's talk about neovim btw. Neovim is my chosen hyper-extensible text editor.

Throughout my two years of using neovim, I've accumulated a few commands to help ease my development process. As a result, here is a selected list of commands, ordered by functionality

Scratchpad file and debugging.

<leader>ps: (P)aste the content in register + to a newly created, name-inputted-by-user file under the scratch/ directory, and copied the full path file name into your copy-and-paste register (+).
<leader>ys: (Y)ank and paste the current selection to a newly created, name-inputted-by-user file under the scratch/ directory and copied the full path file name into your copy-and-paste register (+).
<leader>yl: (Y)ank the full path + current file name + current line of the cursor and put it in the copy-and-paste register (+).
<leader>yf: (Y)ank the full path + current file name and put it in the copy-and-paste register (+).

The functionality related to scratchpad-ing and debugging are helpful in regard to quickly recreating a file on your local machine from a github issue and execute/run them, as well as quickly input the file name + cursor location to lldb for debugging.

Fuzzy-finder & Grepping

Back before starting my employment @ Igalia, I relied on telescope for all of my fuzzy finding. It turns out telescope is really really slow on big repository, even with ripgrep in place of grep.

With fzf-lua being soooo sooo so customizable, I then turned my focus to said library and hasn't looked back since.

The mapping group for the fuzzy finding functionality is <leader>f* and <leader>g*

<leader>fg: live fuzzy find using ripgrep.
<leader>ff: live fuzzy find using fd.
<leader>fr: resume the last live fuzzy find session.
<leader>fd: live fuzzy find vim diagnostics.
<leader>fm: live fuzzy find marks.
<leader>fb: live fuzzy find recently opened buffers (within current nvim-executed folder)
<leader>g: fuzzy find using ripgrep the word under the cursor or the current selection.

A cool thing about fzf-lua is I can add nvim-treesitter-context as a dependency, which gives me extra context for every match in a file. This makes it so that for example, if I'm searching for a string or a variable in C++, I can instantly know which function the variable is residing in.

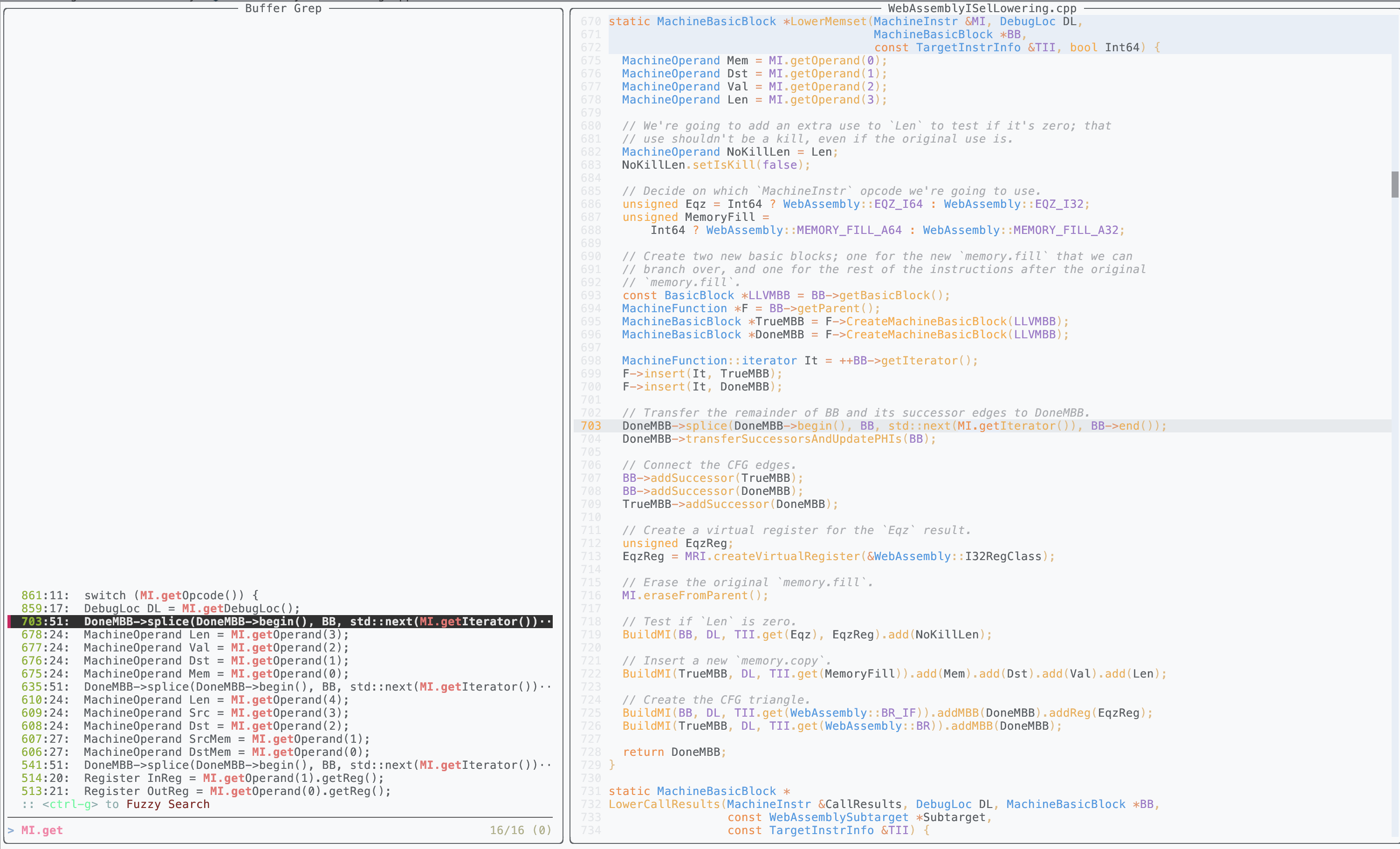

The following picture shows me trying to live grep a text called MI.get in LLVM, you can see that the current match is highlighted. You can see that (without actually going to the match location itself), there is also extra context showing that the current MI.get is from the function LowerMemSet. livegrep

Language server support

Language server protocol is a much-needed functionality in a code editor.

It is also supported via the mapping group <leader>l*

<leader>la: Trigger code (a)ction on the cursor from the language server. This includes capitalize functions and variables to satisfy a standard, filling in the remaining case of a C++ switch construct.
<leader>lr: Smart (r)ename - renaming a variable/function scope-wise.
<leader>c: For C++, switch from a header file to its corresponding source file.

Git support

For a beginner in a codebase (even a seasoned programmer), the ability to obtain more information and context, extending further than the code sitting in front of them, is extremely helpful. Furthermore, small quality-of-life ability such as staging the current selected change to git add (instead of git adding the whole file) is very much appreciated.

My neovim config also supports git through the mapping group <leader>h*. A few capabilities include:

Automatic git signs: shows green in the column for addition, and red for deletion.
Automatic git blame on current line: shows the author and the commit message for the last change to current line.
<leader>yh: (Y)ank the git blame SHA on current line
<leader>hb: Show the git (b)lame on the current file
<leader>hs: (S)tage the current hunk to git add
<leader>hr: (R)eset the current hunk from git add

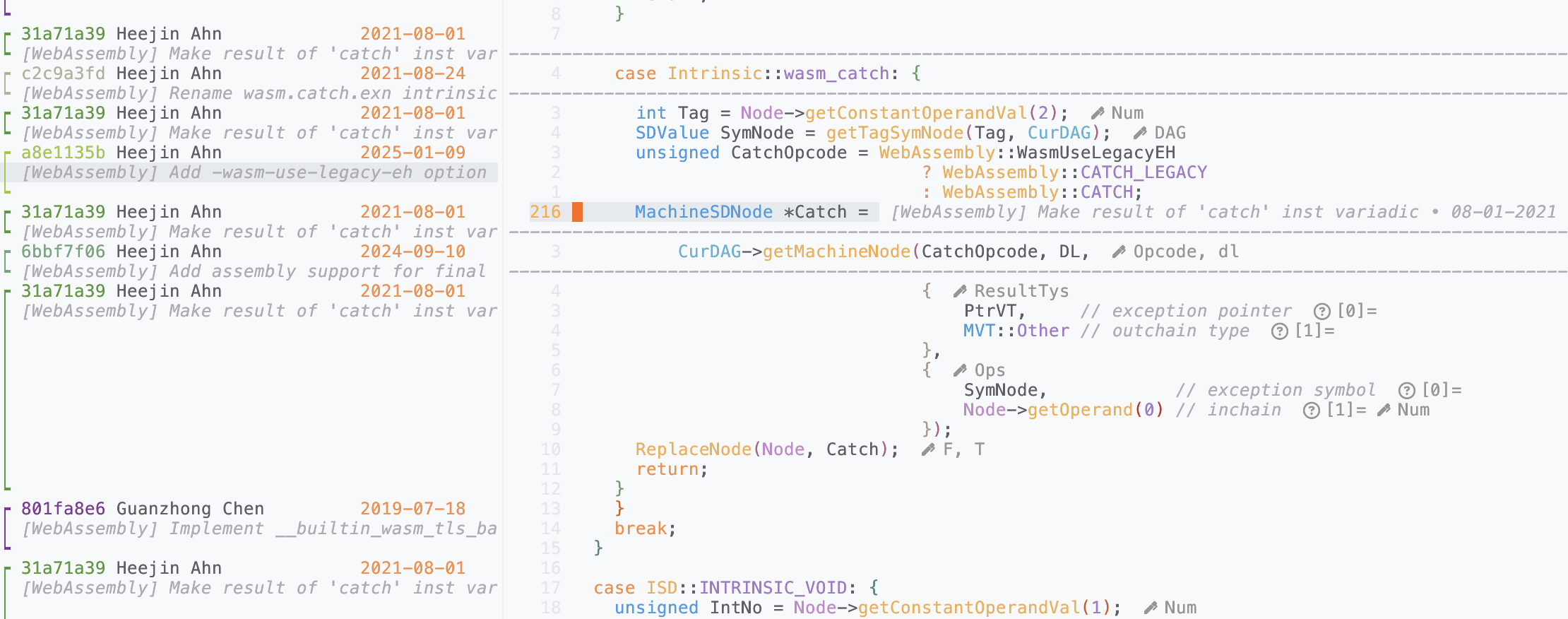

Below shows a demo of the <leader>hb command as well as the automatic git blame line:

gitblame_demo

Autocmd

I also have some quality-of-life auto commands.

When I've performed a yank, I automatically highlight the yanked content for half a second to cognitively confirm the content.
When I opened a file again, I automatically go to the last position where it was edited.
When I've searched for something, and it's highlighted across the file, I automatically remove the highlighting when I enter insert mode.

Introspection

Reflecting on the past 3 weeks, I think my speed of absorbing new llvm knowledge is satisfiable. Regrettably, a lot of the modifications to my dotfile were not in place when I was going through implementing a few of my llvm pull requests. This meant that my speed was essentially reduced or wasted on typing commands that could have been automated. All of these frictions lose me a few seconds and my developer mental capacity here and there, which adds up to hours over the course of a week.

Whoopsies, anyways hahahaha. Here's to a more productive time at Igalia. I hope you've enjoyed this article :)

Jasmine Tang

My blog
